Name: NANO-FIT-TO-NANO-FIT OFF-THE-SHE
SKU: WM25345-ND
Availability: InStock

NANO-FIT-TO-NANO-FIT OFF-THE-SHE

₨1,700.00

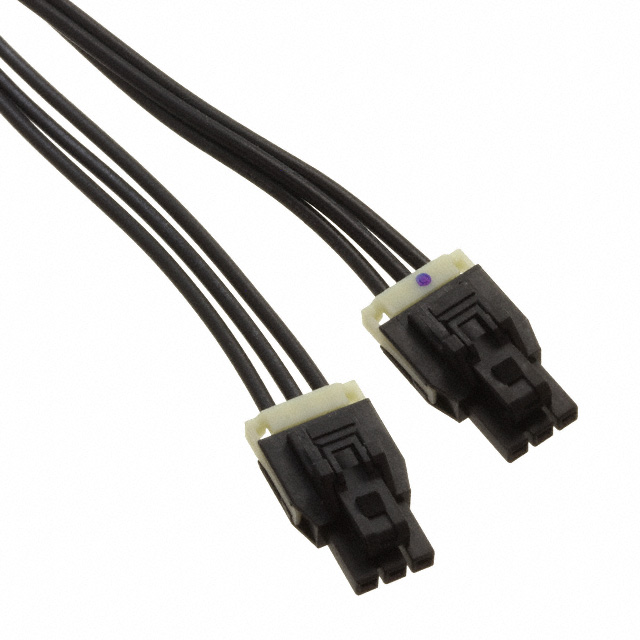

3 Position Cable Assembly Rectangular Socket to Socket 0.984′ (300.00mm, 11.81″)
NANO-FIT-TO-NANO-FIT OFF-THE-SHE
Connector Type
Socket to Socket
Number of Positions
3
Number of Rows
1
Pitch – Connector
0.098″ (2.50mm)

Part Status	Active
Connector Type	Socket to Socket
Number of Positions	3
Number of Rows	1
Pitch – Connector	0.098″ (2.50mm)
Length	0.984′ (300.00mm, 11.81″)
Features	Latch Lock, Polarizing Key
Color	Black, Individual
Shielding	Unshielded
Cable Termination	Crimp
Contact Finish	Tin
Contact Finish Thickness	100.0µin (2.54µm)

Cable Length	300.00mm	Circuits (Loaded)	3
Circuits (maximum)	3	Color – Resin	Black
Gender	Female-Female	Lock to Mating Part	Yes
Material – Metal	High Conductivity Copper	Material – Plating Mating	Matte Tin
Material – Plating Termination	Matte Tin	Material – Resin	Nylon
Net Weight	8.004/g	Number of Rows	1
Overmolded	No	Packaging Type	Bag
Pitch – Mating Interface	2.50mm	Plating min – Mating	2.540µm
Plating min – Termination	2.540µm	Single Ended	No
Termination Interface Style	Crimp or Compression	Wire/Cable Type	UL 1061
Wire Insulation Diameter	1.57mm	Wire Size (AWG)	20

Datasheet
