| Part Status | Active |

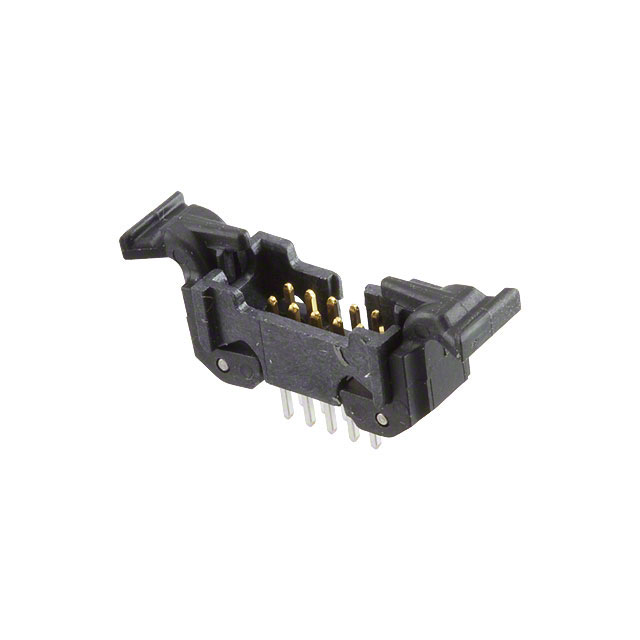

| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch – Mating | 0.050″ (1.27mm) |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing – Mating | 0.050″ (1.27mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded – 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Lock/Eject Hooks, Short |
| Contact Length – Post | 0.094″ (2.40mm) |
| Insulation Height | 0.222″ (5.65mm) |
| Contact Shape | Square |
| Contact Finish – Mating | Gold |
| Contact Finish Thickness – Mating | 30.0µin (0.76µm) |
| Contact Finish – Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Keying Slot |
| Operating Temperature | -65°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 1A |
| Voltage Rating | 125V |
| Mated Stacking Heights | 5.84mm, 6.60mm, 7.21mm, 8.13mm |
| Contact Finish Thickness – Post | 200.0µin (5.08µm) |
